Immersion Heaters

Immersion Heaters consist of tubular or Mica heating elements. Immersion heaters are very efficient since all energy that is generated is dissipated directly into the medium which is being heated. Immersion Heaters are used to heat fluids such as water, oil, chemical solutions, electro-plating and salt solutions.

We recommend the use of level controls and over-temperature sensors. (see pictures on the right)

Types of immersion heaters

1. Screw- or pipe Plug Immersion Heaters
2. Flanged Immersion Heaters
3. Over the side immersion heaters
4. Drum Heaters

Common watt densities for immersion heaters:
45 to 100 WSI: water
20 to 25 WSI: light oils, cooling fluids
10 to 15 WSI: medium viscosity oils
7 WSI: rude crude oil, vicious materials
5 WSI: very vicious materials

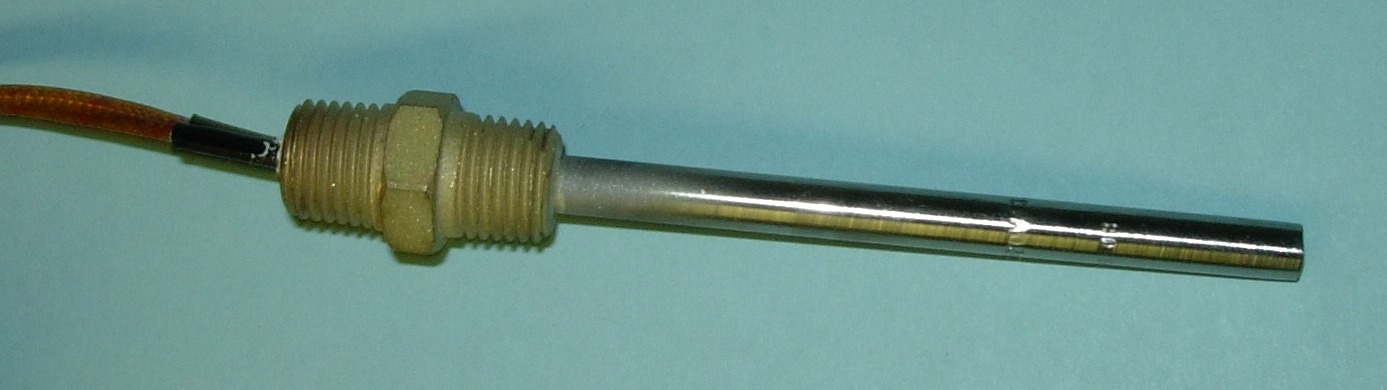

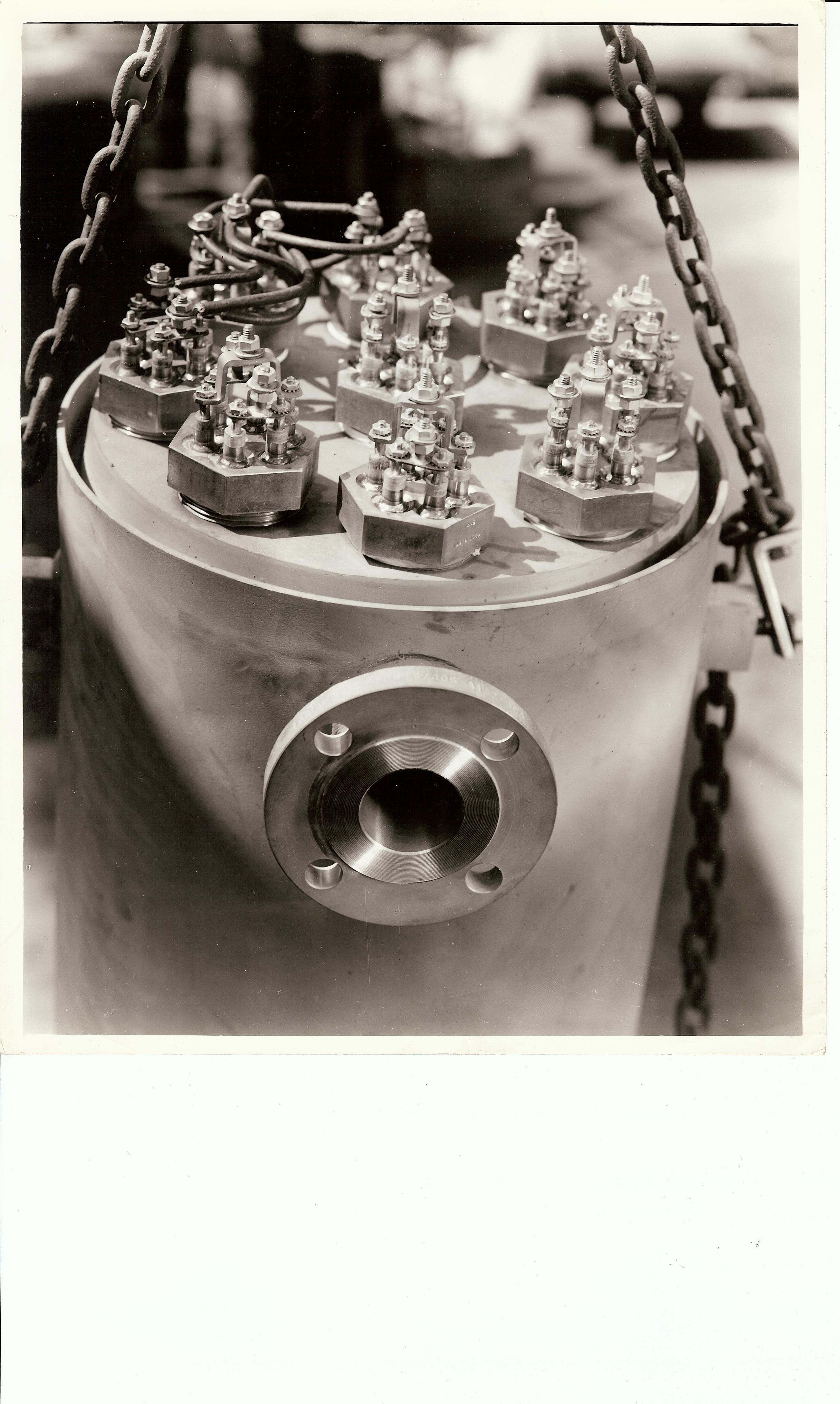

Screw- or pipe plug Immersion Heaters: (from 350W to 38'000W)

1. 1", 1 �", 2" and 2 �" NPT pipe plug in brass, steel or stainless steel
2. sheet material: copper, steel, stainless steel, Incoloy, Teflon (PTFE) coating available
3. terminals can be NEMA 1, moisture resistant or explosion proof
4. terminals can be with or without thermostat.

Flanged Immersion Heaters

Flanged Immersion Heaters, both round flange and square flange models are available for applications requiring larger wattages. Flanged heaters are made from tubular heaters or Mighty blade elements brazed or welded into a pipe flange. They are used in large capacity vessels, high pressure applications and are installed by bolting the unit to a matching flange welded to the vessel wall.

1. sheet material: copper, steel, stainless steel, Incoloy, Teflon (PTFE) coating available
2. terminals can be NEMA 1, moisture resistant or explosion proof

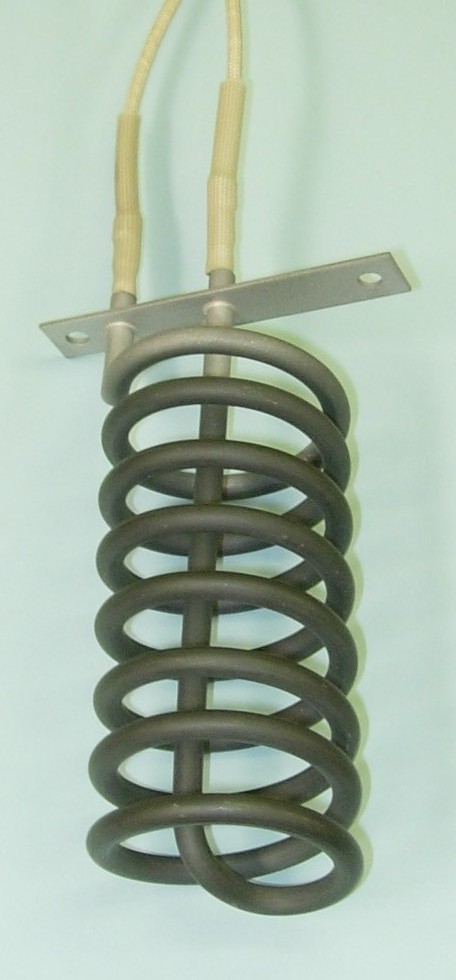

Over the side immersion heaters

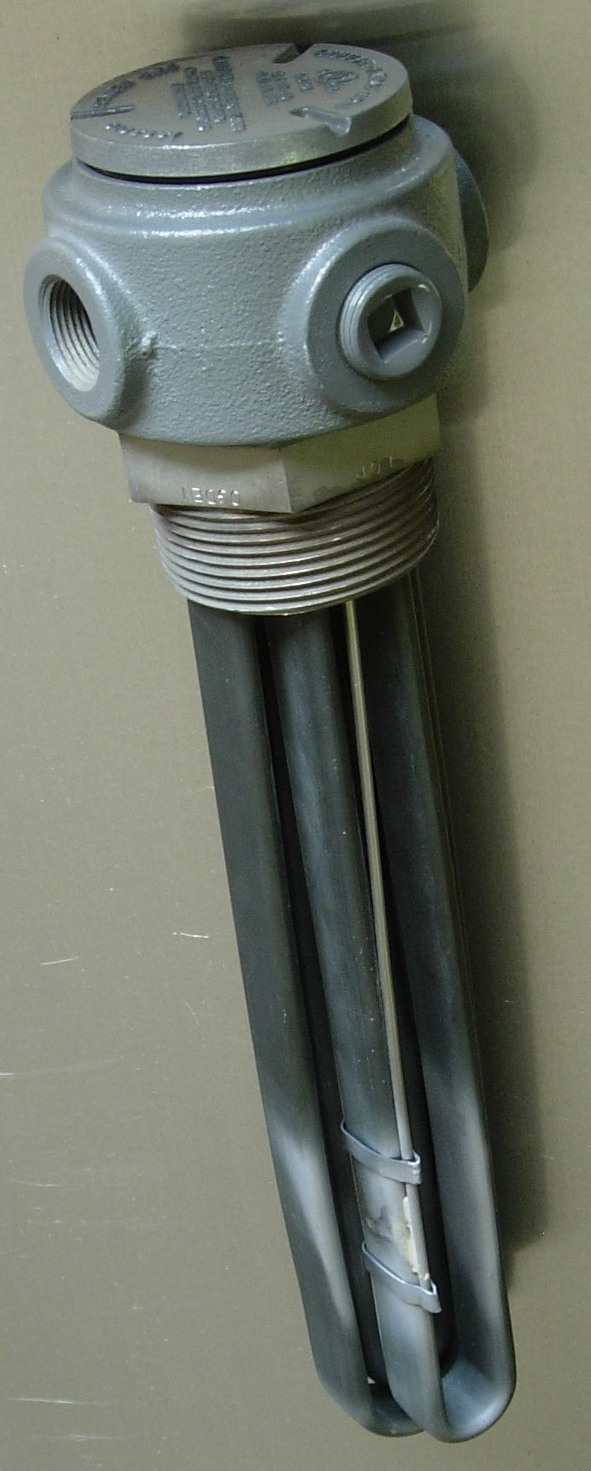

screw plug immersion heater with thermocouple in thermowell and high temperature control

over the side immersion heaters

immersion heater with TC
